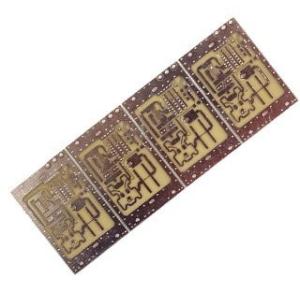

Rogers 4003C 2 Layer High Frequency PCB for RF Microwave Applications

Rogers 4003C Base Material Rogers Pcb Material Properties

PCB Parameter:

Material: Rogers 4003C

Number of layers: double-sided circuit board

Board thickness: 1.6mm

Copper thickness: 1oz

Surface treatment process: Immersion gold + selective thick gold plating

Solder mask character color: brown and white

Minimum line width/line spacing: 15.0/12.0mil

The smallest hole: 0.5mm

Technical features: countersunk hole

Rogers PCB applications.

Moreover, since nowadays 5G Technology developments are growing quickly, various devices request high-frequency PCBs and RF PCBs with high performance which need not only low electrical noise but also low signal losses. And Rogers PCB material is a perfect choice to match the technological characteristics, besides it is also cost-effective for this purpose. Some Rogers PCB applications are:

1 .Automotive Radar and Sensors
2. Microwave equipment of all kinds.
3. Cellular Base Station Antennas
4. RF Identification (RFID) Tags
5. 5G Station
6. Microwave point to point (P2P) links
7. LNB’s for Direct Broadcast Satellites

FAQ
Q1.What is needed for quotation?
A: PCB : Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness)
PCBA: PCB information, BOM, (Testing documents)

Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?
A: Your files are held in complete safety and security.
We protect the intellectual property for our customers in the whole process.
All documents from customers are never shared with any third parties.

Q4. MOQ?
There is no MOQ. We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods.
Please let us know if you need us to quote you the shipping cost.

Q6. Do you accept process materials supplied by clients?
A: Yes, we can provide component source, and we also accept component from client..
